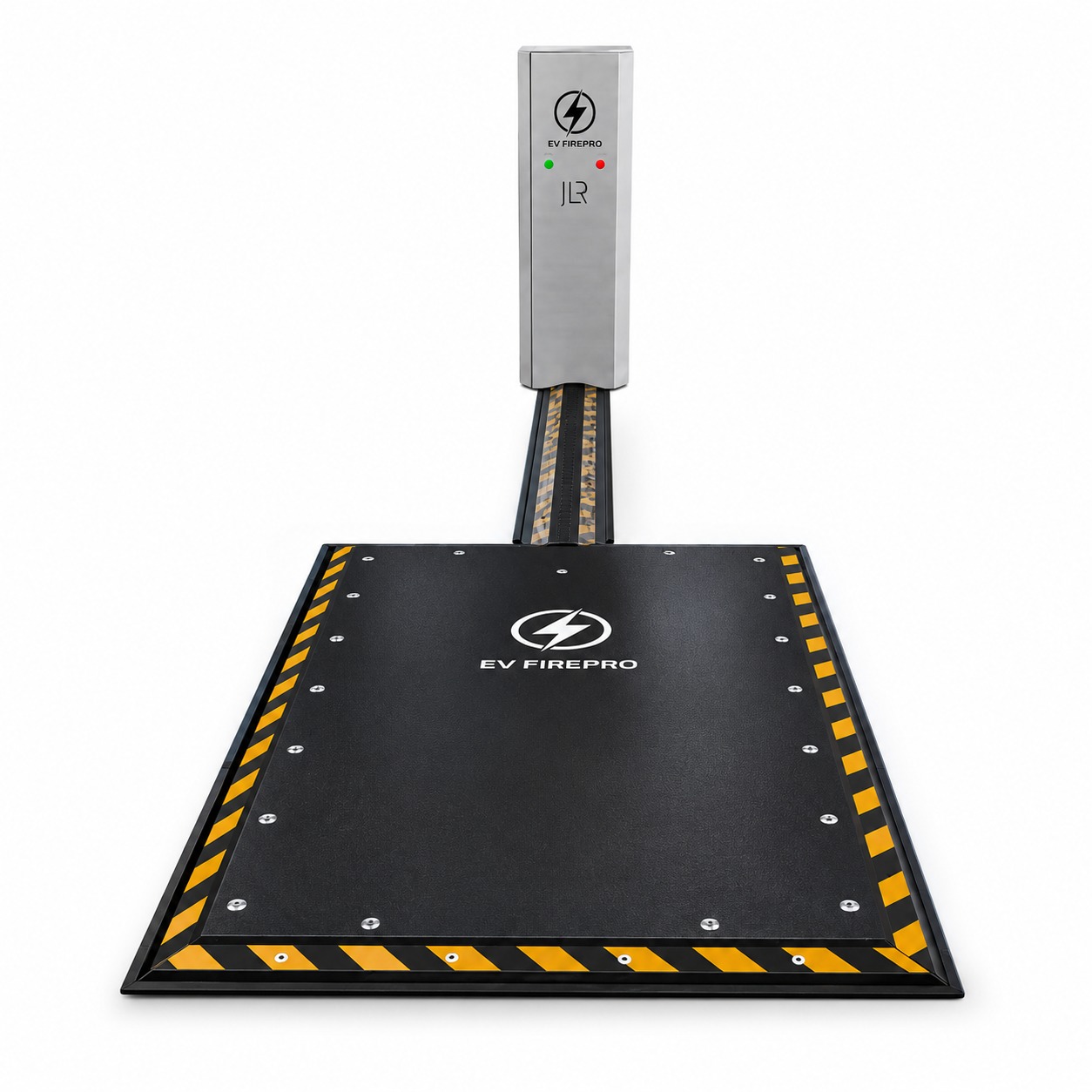

EV FirePro Signature

The EV FirePro Signature features an enclosed control column that conceals all pipework and electrical cabling, delivering a sleek, fully integrated appearance. Designed for premium developments and architecturally sensitive environments,

 it offers the same proven performance and technical features as the EV FirePro Plus – including compatibility with building mains, existing sprinkler or hydrant systems, or a dedicated tank and pump, as well as integration with FACP and BMS for addressable monitoring and control. As an advanced EV car fire suppression solution, it provides reliable protection against EV and lithium battery fire risks while maintaining a refined and streamlined design.

Constructed in 304 or 316 marine-grade stainless steel, the Signature combines performance with aesthetics. For installations in coastal or corrosive environments, 316 marine-grade stainless steel is required to ensure full corrosion resistance and long-term finish integrity.

• Integrated enclosed control column
• Concealed pipework & cabling
• FACP/BMS integration for addressable monitoring
• 304 / 316 marine-grade stainless steel construction

Key Benefits

• Designed for premium and architecturally sensitive environments
• Integrated enclosed control column for a sleek, concealed appearance
• Compatible with building mains, sprinkler or hydrant systems, or dedicated tank and pump
• FACP/BMS integration for addressable monitoring and control
• Linear Heat Detection (LHD) wire for reliable activation
• Multiple activation temperature options (68°C / 88°C / 105°C)
• Durable 304 / 316 marine-grade stainless steel construction
• Designed for EV & lithium battery fire risks

Ideal Applications

• Premium residential developments
• Mixed-use buildings
• Architecturally sensitive environments
• Boutique commercial developments
• High-end automotive showrooms

Water Supply Options

• Building mains
• Existing sprinkler or hydrant system
• Dedicated tank and pump

Mounting Configuration

• Integrated enclosed control column (concealed pipework and cabling)

Dimensions

• Cover plate length: 1990mm
• Width: 1270mm
• Height: 30mm
• Packaged: ~2100 x 1300 x 75mm

Weight

• Total: ~150kg
• Cover plate: ~62.5kg
• Pipe frame: ~36.5kg

Materials

• 304 / 316 marine-grade stainless steel (main structure & control column)
• GRP infills
• High-pressure layflat hose

316 marine-grade stainless steel required for coastal or harsh environments.

Performance

• Flow rate: 8L/sec (max)
• Pressure: up to 750 kPa
